M177 Rear Main Seal Leak & Oil Separator Failure Explained
- 603 MTech Autowerks
- Feb 25
- 7 min read
The Mercedes-Benz M177 4.0L twin-turbo V8 is one of AMG’s most impressive modern engines.
Found in high-performance models like the C63, E63, GLE63, GLS63 GLC63, G63, GT63 and other AMG variants, it delivers serious power and performance.
However, as these vehicles accumulate mileage, one of the most frequent and expensive problems we encounter is oil separator failure, which will often lead to rear main seal leaks.
If you are noticing oil dripping from the rear of the engine, oil around the transmission bellhousing, or a burning oil smell, understanding the root cause is critical before replacing parts.
What Is the Mercedes M177 Engine?
The M177 is AMG’s 4.0L twin-turbo V8 platform used in:
Mercedes-Benz C63 AMG
Mercedes-Benz E63 AMG
Mercedes-Benz GLS63 AMG
Mercedes-Benz GLE63 AMG
Mercedes-Benz GLC63 AMG
Mercedes-Benz GT 63 AMG
Mercedes-Benz G63 (certain variants)
Other AMG 4.0L applications
This engine relies heavily on a properly functioning crankcase ventilation system to regulate internal pressure. When that system begins to fail, oil leaks often follow.
What Does the Oil Separator Do?
The oil separator is part of the crankcase ventilation system. Its job:
• Separate oil vapor from crankcase gases
• Regulate crankcase pressure
• Prevent excessive pressure buildup
• Return oil back into the engine
When the oil separator fails, crankcase pressure can become unbalanced.
In some cases, excessive positive pressure builds inside the engine. That pressure forces oil past engine seals, and the rear main seal is often one of the first to fail.
However, the opposite can also occur. When the oil separator malfunctions, it can create excessive negative pressure (vacuum) inside the crankcase. Instead of pushing seals outward, excessive vacuum can actually pull seals inward, distorting or damaging the seals. In many real-world cases, this is what we observe during inspection.
Symptoms of excessive vacuum may include:
• Noticeable whistling or howling sound
• Improper or unstable idle speed
• Oil leaks despite no obvious external seal damage
How to Check for M177 Oil Separator Failure
In many cases, excessive crankcase imbalance can be identified with a simple check. With the engine idling, carefully attempt to remove or loosen the oil fill cap.
If there is excessive vacuum, the oil cap will be extremely difficult to remove due to strong suction. In some cases, once loosened, the engine idle may change immediately.
If you hear a whistling sound, try slightly loosening the oil cap. If the noise disappears or changes significantly, that is often a strong indication that the oil separator is failing and creating excessive vacuum. This is one of the most common early signs we observe before larger oil leaks develop.
On the other hand, if excessive positive pressure is present, removing the oil cap may cause noticeable air pressure release or even push the cap upward due to internal pressure buildup.
Both excessive positive pressure and excessive vacuum can damage seals, gaskets, and other engine components. Proper crankcase pressure balance is critical to the long-term health of the M177 engine.
How Oil Separator Failure Causes Rear Main Seal Leaks
When crankcase pressure rises beyond normal operating levels, oil is pushed past the weakest sealing points. On the M177 engine, the rear main seal sits at the back of the crankshaft where the engine meets the transmission.
Common symptoms include:
Oil dripping from the transmission bellhousing
Oil pooling at the rear of the engine
Burning oil smell
Oil spots under the vehicle
Increased oil consumption
If left unaddressed, elevated crankcase pressure can also lead to:
Rear main seal leaks
Front crankshaft seal leaks
Valve cover gasket leaks
Front timing cover leaks
Additional external seal failures
Replacing only the rear main seal without correcting oil separator failure often results in repeat leaks.
Mercedes Technical GUIDANCE on Rear Main Seal Leaks

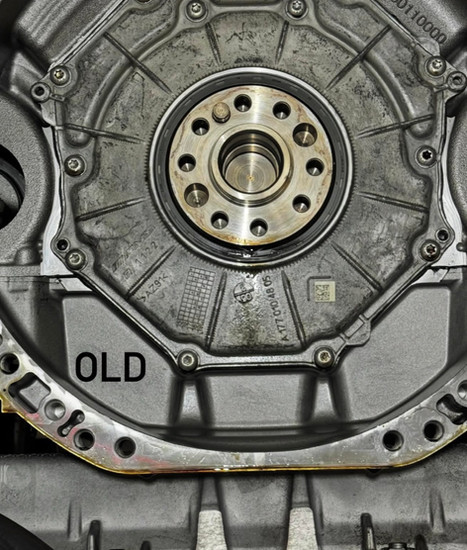

Old rear main seal Updated rear main seal
Mercedes-Benz has issued technical guidance indicating that when diagnosing oil leaks from the rear main seal area on the M177 platform, the crankcase ventilation system and oil separators must be inspected.
If crankcase pressure is not corrected, replacing the rear main seal alone may not permanently resolve the issue. The root cause must be addressed to prevent repeat failures.
In addition, Mercedes has released an updated rear main seal design for certain M177 applications. The rear main seal now comes as a complete plate assembly with the integrated seal pre-installed. The updated version includes revised sealing material and updated fasteners.
It is critical to use the updated rear main seal plate during replacement. Reusing the original plate or installing an outdated design can increase the risk of repeat oil leaks.
Equally important is using the correct Mercedes-Benz approved sealant and applying it in the proper pattern along the plate surface. The sealant path and application method are specified by the manufacturer. Incorrect sealant type or improper application can lead to seepage or premature failure, even when using the updated components.
Installation also requires a Mercedes-Benz special alignment tool to properly position and center the rear main seal assembly on the crankshaft. Without the correct tool, improper alignment can damage the seal lip or cause uneven sealing pressure, which may result in repeat leaks.
Proper parts selection, factory-approved sealant, correct application procedure, and use of the required special tools are all essential to ensuring the repair is completed correctly the first time.
Transmission Removal Is Required
Rear main seal replacement on the M177 requires transmission removal, and this is not a minor repair. The transmission must be separated from the engine assembly to properly access the rear main seal.
However, depending on the specific AMG model and configuration, in some cases the engine and transmission assembly may need to be removed together. On many modern Mercedes-Benz AMG platforms, we often choose to remove the engine assembly rather than perform the repair entirely in the vehicle.
On the M177 platform, performing rear main seal and oil separator repairs in the vehicle can involve excessive labor time due to the tight access of components, intercoolers, exhaust routing, cooling lines, and 48-volt system components on certain models.
When the engine is removed:
• Access is significantly improved
• The repair can be performed cleaner and more accurately
• Labor overlap allows multiple common issues to be addressed at the same time
• Additional components such as engine mounts can be inspected or replaced efficiently
In many cases once the engine is removed, labor to replace related components is dramatically reduced. What may take hours in the vehicle can often be completed in a fraction of the time with proper access.
Many people believe that removing the engine always raises costs, but with modern Mercedes platforms, this isn't necessarily true. Due to the complexity and access of today’s AMG engines, engine removal can actually reduce overall labor time while improving repair quality. Proper diagnosis and repair planning are critical to ensuring the work is performed efficiently and correctly the first time.
Vehicles Equipped with an Integrated Starter Alternator (ISA)
Many newer M177-equipped AMG models use an Integrated Starter Alternator (ISA), sometimes referred to as an Integrated Starter Generator.
The Integrated Starter Alternator is mounted within the transmission bellhousing area and is part of Mercedes 48-volt hybrid system. It is only installed on vehicles equipped with the 48-volt hybrid system, which may not include all M177 models.
On these vehicles:
• The transmission must be removed
• The Integrated Starter Alternator unit must be removed
• Labor time increases significantly
If a rear main seal leak has been present for an extended period, oil will contaminate the Integrated Starter Alternator. When this occurs, the ISA will need to be replaced as per manufacture. Because it is part of the 48-volt hybrid system, replacement can add thousands of dollars to the overall repair cost.
This is why early diagnosis of oil leaks and possible oil separator failure, along with crankcase pressure issues are critical. Addressing the root cause before oil spreads can prevent significantly higher repair expenses.
M177 rear main seal leak AND Oil Separator Repair Cost
Repair costs depend on several factors, including:
The specific model (C63, E63, GLE63, G63, etc.)
Whether the vehicle is equipped with an Integrated Starter Alternator
The extent of oil leakage
Whether additional seals have been affected
Whether surrounding components have been contaminated
Because transmission removal is required, labor is significant. When both the rear main seal and oil separators require replacement, total repair costs are commonly over $5,000 depending on model configuration.
Vehicles equipped with an Integrated Starter Alternator may require additional labor. If oil contamination has occurred, component replacement can increase overall cost further. The Integrated Starter Alternator itself typically lists for over $2,500 for the part alone, not including labor.
By comparison, addressing oil separator failure early before it leads to rear main seal failure is typically just under $2,000. Catching the issue at the oil separator stage can prevent transmission removal, prevent ISA contamination, and significantly reduce total repair costs. We regularly perform M177 rear main seal and oil separator repairs in-house. Proper inspection, correct parts, and complete repair procedures are essential for long-term reliability on AMG platforms.
Real-World M177 Engine Repairs
Rear main seal and oil separator replacement on a 2020 Mercedes-Benz S63 AMG
Frequently Asked Questions About the Mercedes M177 Rear Main Seal and Oil Separator
What causes rear main seal leaks on the M177 engine?
The most common cause is elevated crankcase pressure due to oil separator failure. Excess pressure forces oil past the rear main seal.
Can a bad oil separator cause oil leaks?
Yes. When the oil separator fails, crankcase pressure increases and can cause rear main seal leaks, valve cover leaks, and other seal failures.
Does the transmission need to be removed to replace the rear main seal?
Yes. On M177-equipped AMG models, transmission removal is required to access and replace the rear main seal properly.
What is an Integrated Starter Alternator (ISA)?
The Integrated Starter Alternator is part of Mercedes 48-volt hybrid system. On certain M177 models, it must be removed during rear main seal repairs. If contaminated with oil, replacement may be necessary.
How much does it cost to replace a rear main seal and oil separators on a Mercedes AMG?
Costs vary depending on the model and configuration. When both the rear main seal and oil separators are replaced together, repairs are typically over $5,000. Vehicles equipped with an
Integrated Starter Alternator may require additional labor and, in some cases, component replacement.
Final Thoughts
The Mercedes M177 is a powerful AMG engine, but proper crankcase ventilation function is critical to its longevity. Addressing oil separator failure early can prevent rear main seal leaks, Integrated Starter Alternator contamination, and unnecessary repeat repairs. Working with a specialist familiar with the M177 platform ensures accurate diagnosis and repair planning from the start. Here at 603 MTech Autowerks, that's exactly what you can expect.
